ET-SGM15A


所属分类

圆形直齿减速电机


>尺寸(WL): Φ15.5mm >电压: 1.5-6VDC >转速: 8-1000rpm >典型用途: 电子锁、阀门

产品详情


Overviews
Performance Range: Key Features: Typical Applications:
-Voltage: 1.5-6VDC
-Speed: 8-1000rpm
-Torque: 0.05-5kg.cm
-Metal Brush
-CW/CCW Running
-Low noise
-Safe and Locking
-Electric Valve and Electric Switch
-Cosmetic Brush
Gear Ratio
Gear Ratio Stage 2 3 4
Gear Ratio 10  35  115
  63  150
  86  360



Gearbox Length(L)       11

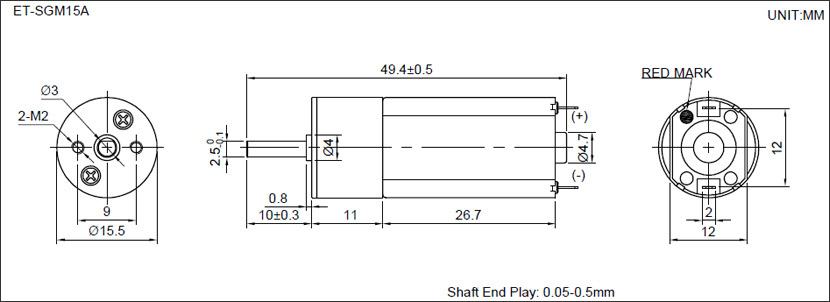

Dimensions

pic



Reference Data
MODEL VOLTAGE NO LOAD AT RATED LOAD
OPERATION
RANGE
NOMINAL SPEED CURRENT SPEED CURRENT TORQUE
r/min A r/min A kg.cm
ET-SGM15A-121200 4.5-13.5 12.0 1200 ≤0.05 1000 ≤0.15 0.08
ET-SGM15A-12342 4.5-13.5 12.0 342 ≤0.05 274 ≤0.15 0.28
ET-SGM15A-12190 4.5-13.5 12.0 190 ≤0.05 148 ≤0.15 0.5
ET-SGM15A-12139 4.5-13.5 12.0 139 ≤0.05 104 ≤0.15 0.65
ET-SGM15A-12104 4.5-13.5 12.0 104 ≤0.05 76 ≤0.15 0.88
ET-SGM15A-1280 4.5-13.5 12.0 80 ≤0.05 58 ≤0.15 1.1
ET-SGM15A-1248 4.5-13.5 12.0 48 ≤0.05 35 ≤0.15 1.8
ET-SGM15A-1233 4.5-13.5 12.0 33 ≤0.05 24 ≤0.15 2.5
ET-SGM15A-05117 1.5-7.0 5.0 117 ≤0.08 85 ≤0.17 0.4
ET-SGM15A-0586 1.5-7.0 5.0 86 ≤0.08 61 ≤0.17 0.5
ET-SGM15A-0564 1.5-7.0 5.0 64 ≤0.08 46 ≤0.17 0.6
ET-SGM15A-0550 1.5-7.0 5.0 50 ≤0.08 36 ≤0.17 0.8
ET-SGM15A-0521 1.5-7.0 5.0 21 ≤0.08 14 ≤0.17 1.7
ET-SGM15A-0331 1.5-4.5 3.0 31 ≤0.06 22 ≤0.18 0.6
ET-SGM15A-0313 1.5-4.5 3.0 13 ≤0.06 9 ≤0.18 1.8

Remarks:
1. Shaft dimension can be customized, we usually have 4.4mm, 8mm and 10mm stocks
2. The Voltage can be 1.5V, 3V, 4.5V, 5V, 6V, 9V, 12V; The DC Motor's speed is adjustable.

3. This gearbox can matched with other DC Motor.
