ET-SGM20A
所属分类
圆形直齿减速电机
>尺寸(WL)： Φ20.0mm >电压： 1.5-12VDC >转速： 8-1000rpm >典型用途： 电子锁、智能卫浴
产品详情
Overviews
| Performance Range: | Key Features: | Typical Applications: |
|
-Voltage: 1.5~12VDC
-Speed: 8-1000rpm -Torque: 0.05~6kg.cm |
-Metal Brush
-CW/CCW Running -Low noise |
-Safe and Locking
-Sensor Santiary Dispenser -Robotics |
Gear Ratio
| Gear Ratio Stage | 2 | 3 | 4 | 5 |
| Gear Ratio | 10 | 50 | 100 | 250 |
| 12.5 | 62 | 125 | 313 | |
| 25 | 78 | 156 | 391 | |
| 31 | 195 | 488 | ||
| Gearbox Length(L) | 16 | 17.5 | 19 | 20.5 |

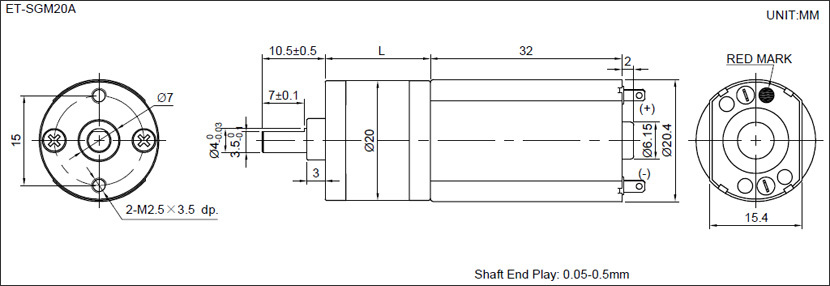

Dimensions
Reference Data
| MODEL | VOLTAGE | NO LOAD | AT rated load | ||||
| OPERATION RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | |
| r/min | A | r/min | A | kg.cm | |||
| ET-SGM20A-12650 | 6.0-13.5 | 12.0 | 650 | ≤0.05 | 530 | ≤0.16 | 0.07 |
| ET-SGM20A-12520 | 6.0-13.5 | 12.0 | 520 | ≤0.05 | 420 | ≤0.16 | 0.09 |
| ET-SGM20A-12260 | 6.0-13.5 | 12.0 | 260 | ≤0.05 | 210 | ≤0.16 | 0.16 |
| ET-SGM20A-12209 | 6.0-13.5 | 12.0 | 209 | ≤0.05 | 163 | ≤0.16 | 0.19 |
| ET-SGM20A-12130 | 6.0-13.5 | 12.0 | 130 | ≤0.05 | 99 | ≤0.16 | 0.3 |
| ET-SGM20A-12105 | 6.0-13.5 | 12.0 | 105 | ≤0.05 | 79 | ≤0.16 | 0.4 |
| ET-SGM20A-1283 | 6.0-13.5 | 12.0 | 83 | ≤0.05 | 62 | ≤0.16 | 0.5 |
| ET-SGM20A-1265 | 6.0-13.5 | 12.0 | 65 | ≤0.05 | 47 | ≤0.16 | 0.6 |
| ET-SGM20A-1252 | 6.0-13.5 | 12.0 | 52 | ≤0.05 | 37 | ≤0.16 | 0.7 |
| ET-SGM20A-1242 | 6.0-13.5 | 12.0 | 42 | ≤0.05 | 30 | ≤0.16 | 0.9 |
| ET-SGM20A-1233 | 6.0-13.5 | 12.0 | 33 | ≤0.05 | 23.5 | ≤0.16 | 1.1 |
| ET-SGM20A-1226 | 6.0-13.5 | 12.0 | 26 | ≤0.05 | 18 | ≤0.16 | 1.4 |
| ET-SGM20A-1221 | 6.0-13.5 | 12.0 | 21 | ≤0.05 | 14 | ≤0.16 | 1.7 |
| ET-SGM20A-1216 | 6.0-13.5 | 12.0 | 16 | ≤0.05 | 11 | ≤0.16 | 2.1 |
| ET-SGM20A-1213 | 6.0-13.5 | 12.0 | 13 | ≤0.05 | 8.8 | ≤0.16 | 2.6 |
| Remarks: 1. Shaft dimension can be customized. 2. The Voltage can be 3V, 6V, 9V, 12V; The DC Motor's speed is adjustable. 3. This gearbox can matched with other DC Motor. |
|||||||
