ET-SGM37D2
所属分类
圆形直齿减速电机
>尺寸(WL)： Φ37mm >电压： 12-24VDC >转速： 10-600rpm >典型用途： 开门器、贩卖机
产品详情
Overviews
| Performance Range: | Key Features: | Typical Applications: |
|
-Voltage: 12~24VDC
-Speed: 10~600rpm -Torque: 0.5~30kg.cm |
-Carbon Brush
-CW/CCW Running -Low noise |
-Range Hood
-Vending and Banking Automation
-Robotics |
Gear Ratio
| Gear Ratio Stage | 2 | 3 | 4 | 5 | 6 |
| Gear Ratio | 10 | 20 | 50 | 120 | 450 |
| 30 | 60 | 150 | 490 | ||
| 70 | 210 | 630 | |||
| 90 | 270 | 810 | |||
| Gearbox Length(L) | 24.5 | 29 | |||

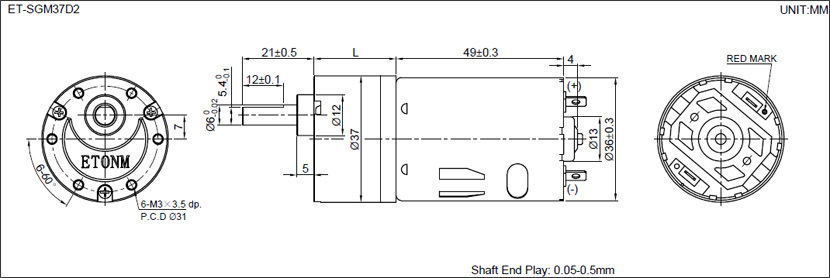

Dimensions
Reference Data
| MODEL | VOLTAGE | NO LOAD | AT RATED LOAD | ||||
| OPERATION RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | |
| r/min | A | r/min | A | kg.cm | |||
| ET-SGM37D2-12600 | 9.0-14.0 | 12.0 | 600 | ≤0.36 | 500 | ≤1.4 | 1.4 |
| ET-SGM37D2-12300 | 9.0-14.0 | 12.0 | 300 | ≤0.36 | 250 | ≤1.4 | 2.5 |
| ET-SGM37D2-12200 | 9.0-14.0 | 12.0 | 200 | ≤0.36 | 166 | ≤1.4 | 4 |
| ET-SGM37D2-12120 | 9.0-14.0 | 12.0 | 120 | ≤0.36 | 100 | ≤1.4 | 5.6 |
| ET-SGM37D2-1285 | 9.0-14.0 | 12.0 | 85 | ≤0.36 | 71 | ≤1.4 | 7.8 |
| ET-SGM37D2-1267 | 9.0-14.0 | 12.0 | 67 | ≤0.36 | 55 | ≤1.4 | 10 |
| ET-SGM37D2-1250 | 9.0-14.0 | 12.0 | 50 | ≤0.36 | 42 | ≤1.4 | 12 |
| ET-SGM37D2-1240 | 9.0-14.0 | 12.0 | 40 | ≤0.36 | 33 | ≤1.4 | 15 |
| ET-SGM37D2-1229 | 9.0-14.0 | 12.0 | 29 | ≤0.36 | 24 | ≤1.4 | 21 |
| ET-SGM37D2-1222 | 9.0-14.0 | 12.0 | 22 | ≤0.36 | 18.5 | ≤1.4 | 27 |
| ET-SGM37D2-1213 | 9.0-14.0 | 12.0 | 13 | ≤0.36 | 11 | ≤1.4 | 30* |
| ET-SGM37D2-129.5 | 9.0-14.0 | 12.0 | 9.5 | ≤0.36 | 8 | ≤1.4 | 30* |
| ET-SGM37D2-1207 | 9.0-14.0 | 12.0 | 7 | ≤0.36 | 6 | ≤1.4 | 30* |
| Remarks: 1. Shaft dimension can be customized. 2. The Voltage can be 6V, 12V, 24V; The DC Motor's speed is adjustable. 3. This gearbox can matched with other DC Motor. |
|||||||
