ET-WGM58BL
所属分类
蜗杆减速电机
>尺寸(WL)： 58*40mm >电压： 12-24VDC >转速： 1-100rpm >典型用途： 医疗仪器
产品详情
| Performance Range: | Key Features: | Typical Applications: |
| -Voltage: 12~24VDC -Speed: 1~100rpm -Torque: 1~80kg.cm |
-Spur Low noise -Small Backlash -High Holding Torque |
-Electric Blinds,Curtain |
Gear Ratio
| Gear Ratio Stage | 3 | 4 | 5 | |
| Gear Ratio | 49 | 217 | ||
| 74 | 291 | |||
| 100 | 506 | |||
| 634 | ||||
| 1269 | ||||

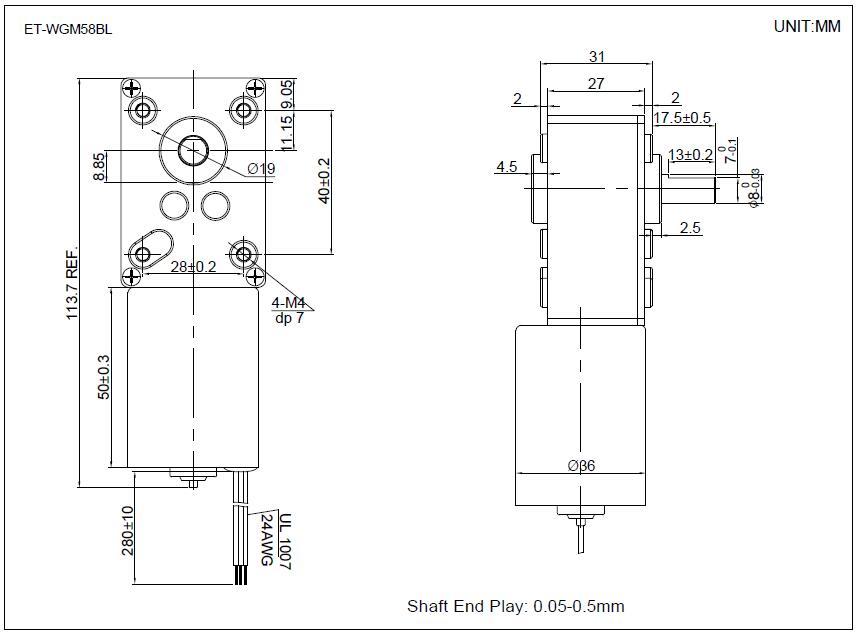

Dimensions
Reference Data
| MODEL | VOLTAGE | NO LOAD | AT RATED LOAD | ||||
| OPERATION RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | |
| r/min | A | r/min | A | kg.cm | |||
| ET-WGM58BL-12122 | 9.0-14.0 | 12.0 | 122 | ≤0.40 | 106 | ≤1.50 | 10 |
| ET-WGM58BL-1281 | 9.0-14.0 | 12.0 | 81 | ≤0.40 | 70 | ≤1.50 | 14 |
| ET-WGM58BL-1260 | 9.0-14.0 | 12.0 | 60 | ≤0.40 | 52 | ≤1.50 | 24 |
| ET-WGM58BL-1227.6 | 9.0-14.0 | 12.0 | 27.6 | ≤0.40 | 24 | ≤1.50 | 37 |
| ET-WGM58BL-1220.6 | 9.0-14.0 | 12.0 | 20.6 | ≤0.40 | 17.8 | ≤1.50 | 50 |
| ET-WGM58BL-1211.8 | 9.0-14.0 | 12.0 | 11.8 | ≤0.40 | 10.2 | ≤1.50 | 80* |
| ET-WGM58BL-129.5 | 9.0-14.0 | 12.0 | 9.5 | ≤0.40 | 8.2 | ≤1.50 | 80* |
| ET-WGM58BL-1210.3 | 9.0-14.0 | 12.0 | 10.3 | ≤0.25 | 8 | ≤0.85 | 32 |
| ET-WGM58BL-125.9 | 9.0-14.0 | 12.0 | 5.9 | ≤0.25 | 4.5 | ≤0.85 | 49 |
| ET-WGM58BL-124.6 | 9.0-14.0 | 12.0 | 4.6 | ≤0.25 | 3.6 | ≤0.85 | 61 |
| ET-WGM58BL-122.4 | 9.0-14.0 | 12.0 | 2.4 | ≤0.25 | 1.7 | ≤0.85 | 70 |
|
Remarks: 2. The Voltage can be 12.0VDC, 24VDC; The DC Motor's speed is adjustable. 3. This Gearbox can matched with other DC Motors.
|
|||||||
