ET-CGM95BLC
所属分类
无刷电机
>尺寸(WL)： 95*60mm >电压： 12-24VDC >转速： 1-160rpm >典型用途： 设备、仪器
产品详情
Overviews
| Performance Range: | Key Features: | Typical Applications: |
|
-Voltage: 12~24VDC
-Speed: 1~160rpm -Torque: 1~120kg.cm |
-Long Lifetime
-Built-in Driver -Low Noise |
-Home Appliances
-Banking and Vending System -Electric Valve and Robotics |
Gear Ratio
| Gear Ratio Stage | 3 | 4 | 5 | |
| Gear Ratio | 37 | 162 | 594 | |
| 60 | 265 | 651 | ||
| 86 | 315 | 973 | ||
| 1059 | ||||

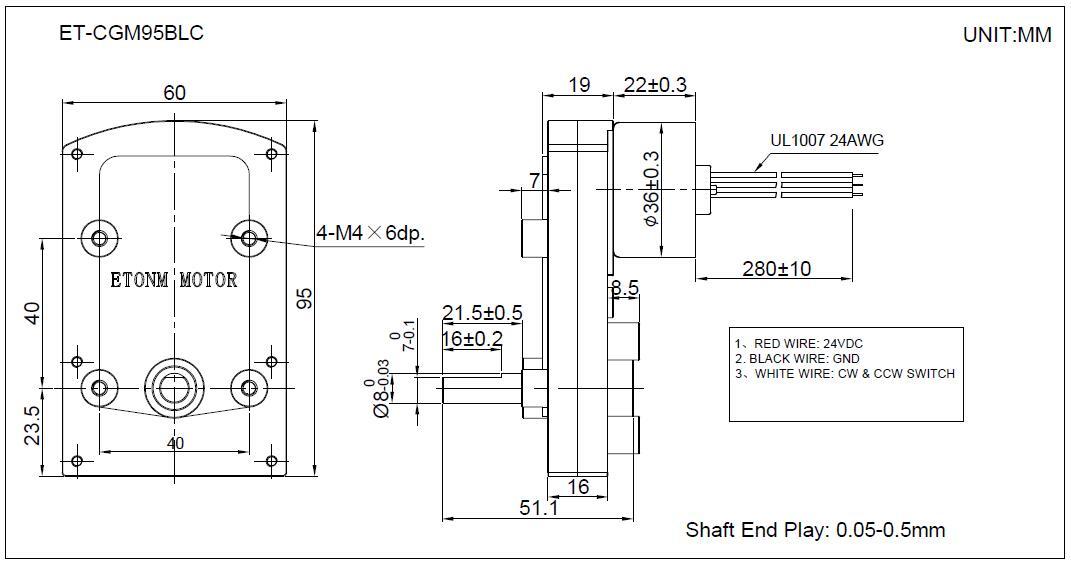

Dimensions
Reference Data
| MODEL | VOLTAGE | NO LOAD | AT RATED LOAD | ||||
| OPERATION RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | |
| r/min | A | r/min | A | kg.cm | |||
| ET-CGM95BLC-2481 | 20.0-28.0 | 24.0 | 81 | ≤0.10 | 65 | ≤0.3 | 1.6 |
| ET-CGM95BLC-2450 | 20.0-28.0 | 24.0 | 50 | ≤0.10 | 40 | ≤0.3 | 3 |
| ET-CGM95BLC-2435 | 20.0-28.0 | 24.0 | 35 | ≤0.10 | 28 | ≤0.3 | 4.4 |
| ET-CGM95BLC-2418.5 | 20.0-28.0 | 24.0 | 18.5 | ≤0.10 | 15 | ≤0.3 | 8 |
| ET-CGM95BLC-2411 | 20.0-28.0 | 24.0 | 11 | ≤0.10 | 9 | ≤0.3 | 13 |
| ET-CGM95BLC-249.5 | 20.0-28.0 | 24.0 | 9.5 | ≤0.10 | 7.6 | ≤0.3 | 15 |
| ET-CGM95BLC-12405 | 20.0-28.0 | 24.0 | 5 | ≤0.10 | 4 | ≤0.3 | 27 |
| ET-CGM95BLC-244.5 | 20.0-28.0 | 24.0 | 4.5 | ≤0.10 | 3.6 | ≤0.3 | 30 |
| ET-CGM95BLC-2403 | 20.0-28.0 | 24.0 | 3 | ≤0.10 | 2.4 | ≤0.3 | 41 |
| Remarks: 1. Gearbox Shaft can be made with double shaft, shaft dimension can be customized. 2. The Voltage can be 12VDC, 24VDC ; The DC Motor's speed is adjustable. 3. This gearbox can matched with other DC Motors. |
|||||||
