ET-SGM37BLB
所属分类
无刷电机
>尺寸(WL)： φ37mm >电压： 12-24VDC >转速： 10-600rpm >典型用途： 风扇
产品详情
Overviews
| Performance Range: | Key Features: | Typical Applications: |
| -Voltage: 12~24VDC -Speed: 10~600rpm -Torque: 0.5~30kg.cm |
-Brushless Long Lifetime -Built-in Driver -Low Noise |
-Humidifier
-Vending and Banking Automation
-Robotics |
Gear Ratio
| Gear Ratio Stage | 2 | 3 | 4 | 5 | 6 |
| Gear Ratio | 10 | 20 | 50 | 120 | 450 |
| 30 | 60 | 150 | 490 | ||
| 70 | 210 | 630 | |||
| 90 | 270 | 810 | |||
| Gearbox Length(L) | 24.5 | 29 | |||

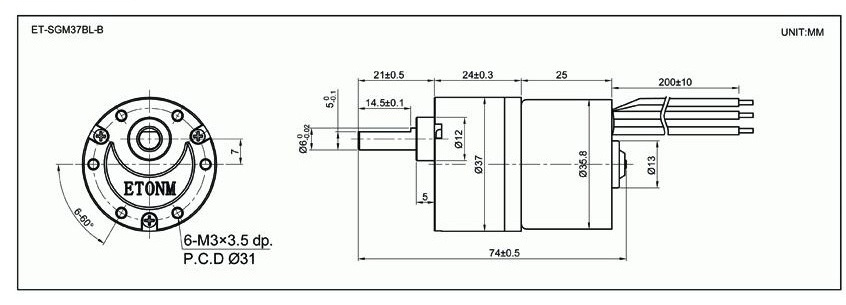

Dimensions
Reference Data
| MODEL | VOLTAGE | NO LOAD | AT RATED LOAD | ||||
| OPERATION RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | |
| r/min | A | r/min | A | kg.cm | |||
| ET-SGM37BLB-24300 | 20.0-28.0 | 24.0 | 300 | ≤0.09 | 240 | ≤0.29 | 0.6 |
| ET-SGM37BLB-24150 | 20.0-28.0 | 24.0 | 150 | ≤0.09 | 120 | ≤0.29 | 1.2 |
| ET-SGM37BLB-24100 | 20.0-28.0 | 24.0 | 100 | ≤0.09 | 80 | ≤0.29 | 1.7 |
| ET-SGM37BLB-2460 | 20.0-28.0 | 24.0 | 60 | ≤0.09 | 48 | ≤0.29 | 3 |
| ET-SGM37BLB-2450 | 20.0-28.0 | 24.0 | 50 | ≤0.09 | 40 | ≤0.29 | 3.5 |
| ET-SGM37BLB-2443 | 20.0-28.0 | 24.0 | 43 | ≤0.09 | 34.5 | ≤0.29 | 4 |
| ET-SGM37BLB-2433 | 20.0-28.0 | 24.0 | 33 | ≤0.09 | 26.5 | ≤0.29 | 5.2 |
| ET-SGM37BLB-2425 | 20.0-28.0 | 24.0 | 25 | ≤0.09 | 20 | ≤0.29 | 6 |
| ET-SGM37BLB-2420 | 20.0-28.0 | 24.0 | 20 | ≤0.09 | 16 | ≤0.29 | 8 |
| ET-SGM37BLB-2414 | 20.0-28.0 | 24.0 | 14 | ≤0.09 | 11 | ≤0.29 | 11 |
| ET-SGM37BLB-2411 | 20.0-28.0 | 24.0 | 11 | ≤0.09 | 9 | ≤0.29 | 14 |
| ET-SGM37BLB-246.6 | 20.0-28.0 | 24.0 | 6.6 | ≤0.09 | 5.3 | ≤0.29 | 23 |
| ET-SGM37BLB-244.7 | 20.0-28.0 | 24.0 | 4.7 | ≤0.09 | 3.8 | ≤0.29 | 30 |
| ET-SGM37BLB-243.7 | 20.0-28.0 | 24.0 | 3.7 | ≤0.09 | 2.9 | ≤0.29 | 35* |
| Remarks: 1. Shaft dimension can be customized. 2. The Voltage can be 12V, 24V; The DC Motor's speed is adjustable. 3. This gearbox can matched with other DC Motor. |
|||||||
