ET-SGM10
所属分类
圆形直齿减速电机
>尺寸(WL)： 10*8mm >电压： 1.5-3.6VDC >转速： 10-2000rpm >典型用途： 机器人、电子锁
产品详情
Overviews
| Performance Range: | Key Features: | Typical Applications: |
|
-Voltage: 1.5~3.6VDC
-Speed: 10~2000rpm -Torque: 0.05~6kg.cm |
-Metal Brush
-CW/CCW Running -Low noise |
-Safe and Locking
-Electric Valve |
Gear Ratio
| Gear Ratio Stage | 3 | 4 |
| Gear Ratio | 100 | 250 |
| Gearbox Length(L) | 9 | |

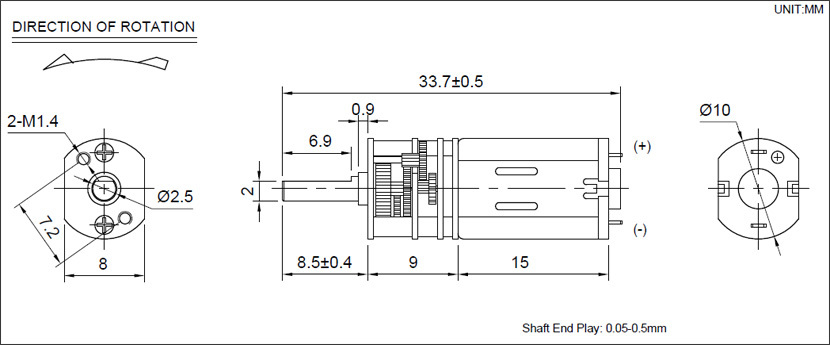

Dimensions
Reference Data
| MODEL | VOLTAGE | NO LOAD | AT RATED LOAD | ||||
| OPERATION RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | |
| r/min | A | r/min | A | kg.cm | |||
| ET-SGM10-03152 | 1.5-4.5 | 3.0 | 152 | ≤0.07 | 135 | ≤0.14 | 0.07 |
| ET-SGM10-0362 | 1.5-4.5 | 3.0 | 62 | ≤0.07 | 52 | ≤0.14 | 0.19 |
| Remarks: 1. Shaft dimension can be customized, we usually have 8.5mm and 10mm stocks 2. The Voltage can be 1.5V, 3V; The DC Motor's speed is adjustable. 3. This gearbox can matched with other DC Motor. |
|||||||
