ET-SGM25B
所属分类
圆形直齿减速电机
>尺寸(WL)： Φ25.0mm >电压： 3-6VDC >转速： 5-100rpm >典型用途： 自动喂食器
产品详情
Overviews
| Performance Range: | Key Features: | Typical Applications: |
|
-Voltage: 3~6VDC
-Speed: 5~100rpm -Torque: 0.05~6kg.cm |
-Metal Brush
-CW/CCW Running -Low noise |
-Safe and Locking
-Electric Valve and Electric Switch -Beauty and Health Care |
Gear Ratio
| Gear Ratio Stage | 4 | 5 | 6 | 7 | 8 |
| Gear Ratio | 13 | 29 | 55 | 121 | 266 |
| 21 | 41 | 63 | 139 | 307 | |
| 47 | 89 | 171 | 376 | ||
| 103 | 197 | 433 | |||
| 226 | 499 | ||||
| Gearbox Length(L) | 23 | 27 | |||

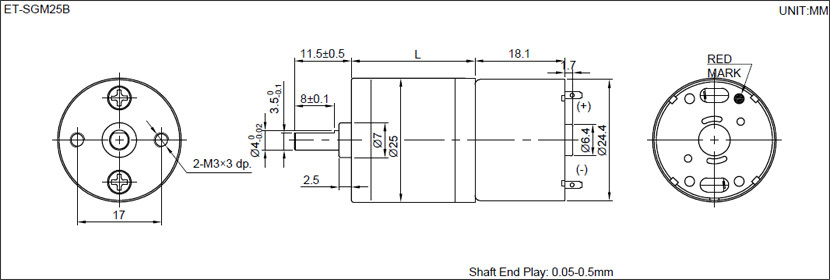

Dimensions
Reference Data
| MODEL | VOLTAGE | NO LOAD | AT RATED LOAD | ||||
| OPERATION RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | |
| r/min | A | r/min | A | kg.cm | |||
| ET-SGM25B-06446 | 3.0-7.2 | 6.0 | 446 | ≤0.05 | 393 | ≤0.22 | 0.1 |
| ET-SGM25B-06335 | 3.0-7.2 | 6.0 | 335 | ≤0.05 | 295 | ≤0.22 | 0.15 |
| ET-SGM25B-06257 | 3.0-7.2 | 6.0 | 257 | ≤0.05 | 213 | ≤0.22 | 0.2 |
| ET-SGM25B-06197 | 3.0-7.2 | 6.0 | 197 | ≤0.05 | 163 | ≤0.22 | 0.25 |
| ET-SGM25B-06149 | 3.0-7.2 | 6.0 | 149 | ≤0.05 | 124 | ≤0.22 | 0.3 |
| ET-SGM25B-06118 | 3.0-7.2 | 6.0 | 118 | ≤0.05 | 93 | ≤0.22 | 0.4 |
| ET-SGM25B-0689 | 3.0-7.2 | 6.0 | 89 | ≤0.05 | 71 | ≤0.22 | 0.5 |
| ET-SGM25B-0668 | 3.0-7.2 | 6.0 | 68 | ≤0.05 | 54 | ≤0.22 | 0.6 |
| ET-SGM25B-0654 | 3.0-7.2 | 6.0 | 54 | ≤0.05 | 41 | ≤0.22 | 0.8 |
| ET-SGM25B-0641 | 3.0-7.2 | 6.0 | 41 | ≤0.05 | 31 | ≤0.22 | 1 |
| ET-SGM25B-0631 | 3.0-7.2 | 6.0 | 31 | ≤0.05 | 23 | ≤0.22 | 1.3 |
| ET-SGM25B-0624 | 3.0-7.2 | 6.0 | 24 | ≤0.05 | 17 | ≤0.22 | 1.5 |
| ET-SGM25B-0618 | 3.0-7.2 | 6.0 | 18 | ≤0.05 | 13 | ≤0.22 | 2.1 |
| ET-SGM25B-0614 | 3.0-7.2 | 6.0 | 14 | ≤0.05 | 9.8 | ≤0.22 | 2.7 |
| ET-SGM25B-0611 | 3.0-7.2 | 6.0 | 11 | ≤0.05 | 7 | ≤0.22 | 3.2 |
| Remarks: 1. Shaft dimension can be customized. 2. The Voltage can be 3V,4.5V, 5V, 6V; The DC Motor's speed is adjustable. 3. This gearbox can matched with other DC Motor. |
|||||||
