ET-SGM51C
所属分类
圆形直齿减速电机
>尺寸(WL)： Φ51mm >电压： 12-24VDC >转速： 2-1000rpm >典型用途： ATM、贩卖机
产品详情
Overviews
| Performance Range: | Key Features: | Typical Applications: |
|
-Voltage: 12~24VDC
-Speed: 2~1000rpm -Torque: 1~50kg.cm |
-Long Lifetime
-CW/CCW Running -Low noise |
-Vending and Banking System
-Equipment and Apparatus -Robotics |
Gear Ratio
| Gear Ratio Stage | 2 | 3 | 4 | 5 | 6 | |
| Gear Ratio | 5.9 | 19.7 | 65.5 | 218 | 728 | |
| 9.9 | 33 | 110 | 367 | 1223 | ||
| Gearbox Length(L) | 37.5 | |||||

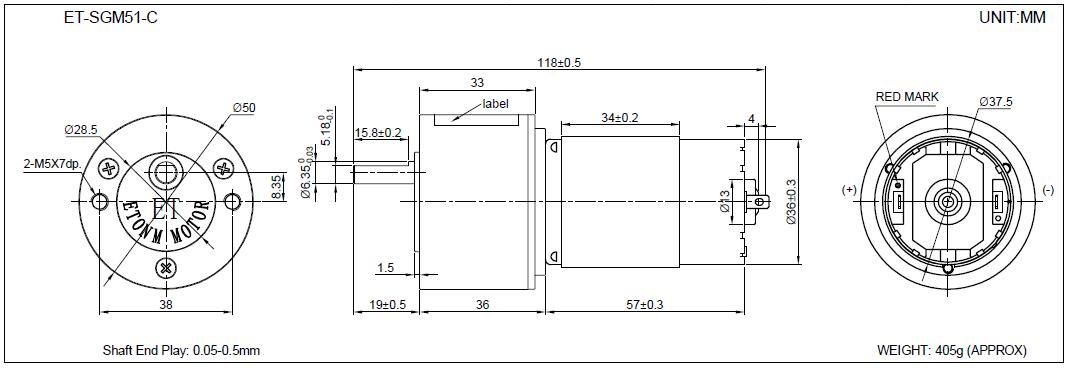

Dimensions
Reference Data
| MODEL | VOLTAGE | NO LOAD | AT RATED LOAD | ||||
| OPERATION RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | |
| r/min | A | r/min | A | kg.cm | |||
| ET-SGM51C-241016 | 14.0-28.0 | 24VDC | 1016 | ≤0.25 | 864 | ≤1.1 | 1.4 |
| ET-SGM51C-24606 | 14.0-28.0 | 24VDC | 606 | ≤0.25 | 520 | ≤1.1 | 2.4 |
| ET-SGM51C-24304 | 14.0-28.0 | 24VDC | 304 | ≤0.25 | 258 | ≤1.1 | 4.3 |
| ET-SGM51C-24181 | 14.0-28.0 | 24VDC | 181 | ≤0.25 | 154 | ≤1.1 | 7.4 |
| ET-SGM51C-2491.6 | 14.0-28.0 | 24VDC | 91.6 | ≤0.25 | 77.8 | ≤1.1 | 12.7 |
| ET-SGM51C-2454.5 | 14.0-28.0 | 24VDC | 54.5 | ≤0.25 | 46 | ≤1.1 | 21.5 |
| ET-SGM51C-2427.5 | 14.0-28.0 | 24VDC | 27.5 | ≤0.25 | 23 | ≤1.1 | 38.5 |
| ET-SGM51C-2416 | 14.0-28.0 | 24VDC | 16 | ≤0.25 | 13.8 | ≤1.1 | 50* |
| ET-SGM51C-2408 | 14.0-28.0 | 24VDC | 8 | ≤0.25 | 7 | ≤1.1 | 50* |
| ET-SGM51C-244.9 | 14.0-28.0 | 24VDC | 4.9 | ≤0.25 | 4.1 | ≤1.1 | 50* |
| Remarks: 1. Shaft dimension can be customized. 2. The Voltage can be 12V, 24V; The DC Motor's speed is adjustable. 3. The gearbox can matched with different DC motors. |
|||||||
