ET-CGM95F
所属分类
方形直齿减速电机
>尺寸(XYZ)： 95*60mm >电压： 12-24VDC >转速： 1-170rpm >典型用途： 机器、设备
产品详情
Overviews
| Performance Range: | Key Features: | Typical Applications: |
|
-Voltage: 12~24VDC
-Speed: 1~170rpm -Torque: 1~50kg.cm |
-High Torque Small Size -Large Speed Range -CW/CCW Running |
-Home Appliances |
Gear Ratio
| Gear Ratio Stage | 3 | 4 | 5 | |
| Gear Ratio | 37 | 162 | 594 | |
| 60 | 265 | 651 | ||
| 86 | 315 | 973 | ||
| 1059 | ||||

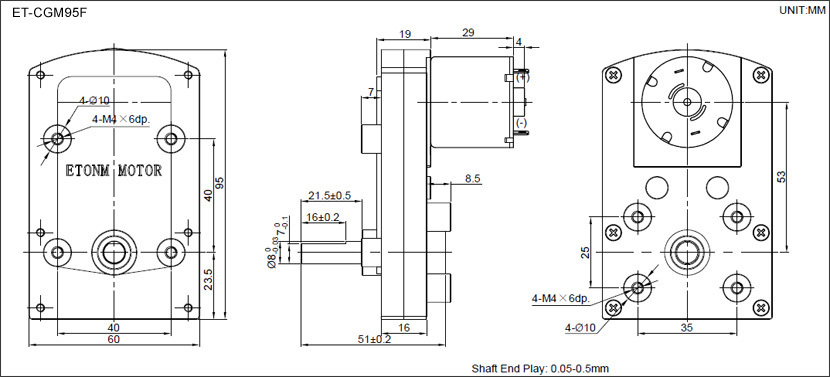

Dimensions
Reference Data
| MODEL | VOLTAGE | NO LOAD | AT RATED LOAD | ||||
| OPERATION RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | |
| r/min | A | r/min | A | kg.cm | |||
| ET-CGM95F-12162 | 10.0-14.0 | 12VDC | 162 | ≤0.08 | 135 | ≤0.29 | 1.4 |
| ET-CGM95F-12100 | 10.0-14.0 | 12VDC | 100 | ≤0.08 | 83 | ≤0.29 | 2.2 |
| ET-CGM95F-1270 | 10.0-14.0 | 12VDC | 70 | ≤0.08 | 58 | ≤0.29 | 3.2 |
| ET-CGM95F-1237 | 10.0-14.0 | 12VDC | 37 | ≤0.08 | 30 | ≤0.29 | 5.4 |
| ET-CGM95F-1223 | 10.0-14.0 | 12VDC | 23 | ≤0.08 | 19 | ≤0.29 | 9 |
| ET-CGM95F-1219 | 10.0-14.0 | 12VDC | 19 | ≤0.08 | 15.7 | ≤0.29 | 10 |
| ET-CGM95F-1210 | 10.0-14.0 | 12VDC | 10 | ≤0.08 | 8.3 | ≤0.29 | 17 |
| ET-CGM95F-1209 | 10.0-14.0 | 12VDC | 9 | ≤0.08 | 7.4 | ≤0.29 | 19 |
| ET-CGM95F-1206 | 10.0-14.0 | 12VDC | 6 | ≤0.08 | 5 | ≤0.29 | 29 |
| ET-CGM95F-125.6 | 10.0-14.0 | 12VDC | 5.6 | ≤0.08 | 4.5 | ≤0.29 | 32 |
| Remarks: 1. Gearbox Shaft can be made with double shaft, shaft dimension can be customized. 2. The Voltage can be 12VDC, 24VDC ; The DC Motor's speed is adjustable. 3. This gearbox can matched with other DC Motor. |
|||||||
