ET-ZGMP38
所属分类
方形直齿减速电机
>尺寸(XYZ)： 76*70mm >电压： 12-24VDC >转速： 0.5-30rpm >典型用途： 设备、阀门
产品详情
Overviews
| Performance Range: | Key Features: | Typical Applications: |
|
-Voltage: 12~24VDC
-Speed: 0.5~30rpm -Torque: 1~100kg.cm |
-High Torque Small Size -Large Speed Range -CW/CCW Running |
-Equipments and Apparatus |
Gear Ratio
| Gear Ratio Stage | 4 | 5 | 6 | 7 | |
| Gear Ratio | 211 | 765 | 1105 | 3061 | |
| 307 | 818 | 1228 | 4592 | ||
| 409 | 6632 | ||||
| 9948 | |||||

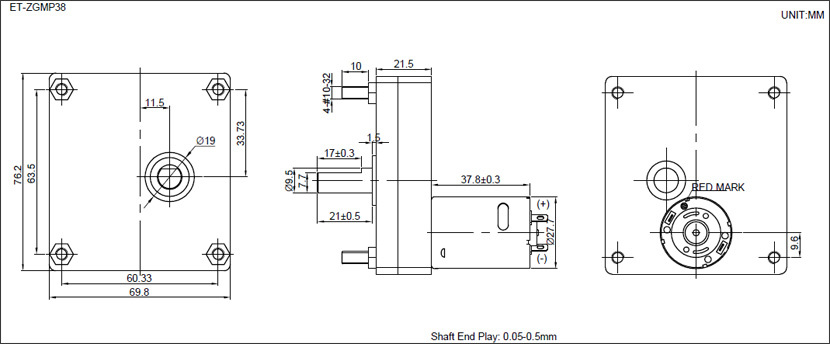

Dimensions
Reference Data
| MODEL | VOLTAGE | NO LOAD | AT RATED LAOD | ||||
| OPERATION RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | |
| r/min | A | r/min | A | kg.cm | |||
| ET-ZGMP38-1228 | 6.0-12.0 | 12.0 | 28 | ≤0.07 | 20.7 | ≤0.7 | 12 |
| ET-ZGMP38-1220 | 6.0-12.0 | 12.0 | 20 | ≤0.07 | 14.6 | ≤0.7 | 17 |
| ET-ZGMP38-1214.5 | 6.0-12.0 | 12.0 | 14.5 | ≤0.07 | 10.6 | ≤0.7 | 23 |
| ET-ZGMP38-127.8 | 6.0-12.0 | 12.0 | 7.8 | ≤0.07 | 5.5 | ≤0.7 | 40 |
| ET-ZGMP38-1207 | 6.0-12.0 | 12.0 | 7 | ≤0.07 | 5.2 | ≤0.7 | 43 |
| ET-ZGMP38-125.5 | 6.0-12.0 | 12.0 | 5.5 | ≤0.07 | 3.8 | ≤0.7 | 58 |
| ET-ZGMP38-1205 | 6.0-12.0 | 12.0 | 5 | ≤0.07 | 3.2 | ≤0.7 | 64 |
| ET-ZGMP38-1202 | 6.0-12.0 | 12.0 | 2 | ≤0.08 | 1.3 | ≤0.8 | 80* |
| ET-ZGMP38-121.3 | 6.0-12.0 | 12.0 | 1.3 | ≤0.08 | 0.85 | ≤0.8 | 80* |
| ET-ZGMP38-120.9 | 6.0-12.0 | 12.0 | 0.9 | ≤0.08 | 0.58 | ≤0.8 | 80* |
| ET-ZGMP38-120.6 | 6.0-12.0 | 12.0 | 0.6 | ≤0.08 | 0.35 | ≤0.8 | 80* |
| Remarks: 1. Gearbox Shaft can be made with double shaft, shaft dimension can be customized. 2. The Voltage can be 12VDC, 24VDC; The DC Motor's speed is adjustable. 3. This gearbox can matched with other DC Motors. |
|||||||
