ET-WGM46
所属分类
蜗杆减速电机
>尺寸(WL)： 46*32mm >电压： 3.0-24VDC >转速： 1-160rpm >典型用途： 阀门、电动窗帘、机器人
产品详情
Overviews
| Performance Range: | Key Features: | Typical Applications: |
| -Voltage: 3~24VDC -Speed: 0.8~40rpm -Torque: 1~40kg.cm |
-Carbon Brushes -Precise Metal Gears -CW/CCW Running -Low noise |
-Home and office Automation |
Gear Ratio
| Gear Ratio Stage | 3 | 4 | 5 | |
| Gear Ratio | 49 | 350 | 1587 | |
| 102 | 700 | 2450 | ||
| 158 | ||||
| 205 | ||||
| 317 | ||||

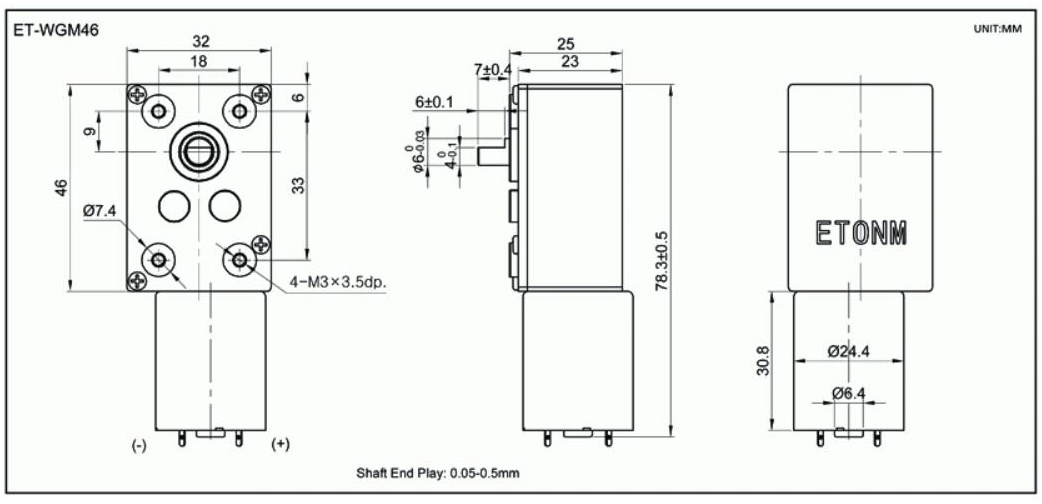

Dimensions
Reference Data
| MODEL | VOLTAGE | NO LOAD | AT RATED LOAD | ||||
| OPERATION RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | |
| r/min | A | r/min | A | kg.cm | |||
| ET-WGM46-2430 | 15.0-28.0 | 24.0 | 30 | ≤0.4 | 27 | ≤0.13 | 2.7 |
| ET-WGM46-2419 | 15.0-28.0 | 24.0 | 19 | ≤0.4 | 15.8 | ≤0.13 | 4.0 |
| ET-WGM46-248.5 | 15.0-28.0 | 24.0 | 8.5 | ≤0.4 | 7 | ≤0.13 | 8.5 |
| ET-WGM46-243.8 | 15.0-28.0 | 24.0 | 3.8 | ≤0.4 | 3 | ≤0.13 | 18.0 |
| ET-WGM46-242.5 | 15.0-28.0 | 24.0 | 2.5 | ≤0.4 | 2 | ≤0.13 | 27.0 |
| ET-WGM46-1230 | 8.0-14.0 | 12.0 | 30 | ≤0.06 | 27 | ≤0.22 | 2.7 |
| ET-WGM46-1219 | 8.0-14.0 | 12.0 | 19 | ≤0.06 | 15.8 | ≤0.22 | 4.0 |
| ET-WGM46-128.5 | 8.0-14.0 | 12.0 | 8.5 | ≤0.06 | 7 | ≤0.22 | 8.5 |
| ET-WGM46-123.8 | 8.0-14.0 | 12.0 | 3.8 | ≤0.06 | 3 | ≤0.22 | 18.0 |
| ET-WGM46-122.5 | 8.0-14.0 | 12.0 | 2.5 | ≤0.06 | 2 | ≤0.22 | 27.0 |
| Remarks: 1. Gearbox Shaft can be made with double shaft, shaft dimension can be customized. 2. The Voltage can be 6VDC, 12.0, 24VDC; The DC Motor's speed is adjustable. 3. This gearbox can matched with other DC Motor. |
|||||||
