ET-PGM22B
所属分类
行星齿轮减速电机
>尺寸(WL)： Φ22mm >电压： 3.0-12VDC >转速： 1-2000rpm >典型用途： 电动窗帘
产品详情
Overviews
| Performance Range: | Key Features: | Typical Applications: |
|
-Voltage: 3.0-12VDC
-Speed: 1-2000rpm -Torque: 0.1-6kg.cm |
-High Torque Small Size
-CW/CCW Running -Precise Metal Gears |
-Electric Curtain |
Gear Ratio
| Gear Ratio Stage | 1 | 2 | 3 | 4 | 5 | |
| Gear Ratio | 4 | 14 | 53 | 164 | 867 | |
| 16 | 62 | 231 | 1014 | |||
| 19 | 72 | 270 | 1249 | |||
| 84 | 370 | 1386 | ||||
| 104 | 455 | 1969 | ||||
| Gearbox Length(L) | 14.4 | 18.0 | 21.7 | 25.3 | 29.0 | |

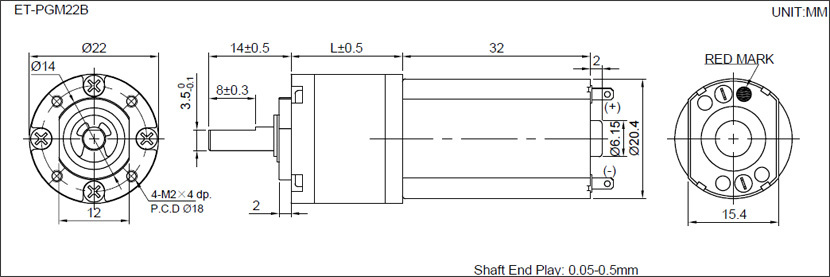

Dimensions
Reference Data
| MODEL | VOLTAGE | NO LOAD | AT RATED LOAD | ||||
| OPERATION RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | |
| r/min | mA | r/min | mA | kg.cm | |||
| ET-PGM22B-12406 | 6.0-12.0V | 12VDC | 406 | ≤60 | 325 | ≤220 | 0.25 |
| ET-PGM22B-12342 | 6.0-12.0V | 12VDC | 342 | ≤60 | 270 | ≤220 | 0.30 |
| ET-PGM22B-12123 | 6.0-12.0V | 12VDC | 123 | ≤60 | 98 | ≤220 | 0.8 |
| ET-PGM22B-1290 | 6.0-12.0V | 12VDC | 90 | ≤60 | 72 | ≤220 | 1.1 |
| ET-PGM22B-1277 | 6.0-12.0V | 12VDC | 77 | ≤60 | 61 | ≤220 | 1.3 |
| ET-PGM22B-1262 | 6.0-12.0V | 12VDC | 62 | ≤60 | 50 | ≤220 | 1.6 |
| ET-PGM22B-1243 | 6.0-12.0V | 12VDC | 43 | ≤60 | 34 | ≤220 | 2.1 |
| ET-PGM22B-1228 | 6.0-12.0V | 12VDC | 28 | ≤60 | 21 | ≤220 | 3.3 |
| ET-PGM22B-1220 | 6.0-12.0V | 12VDC | 20 | ≤60 | 16 | ≤220 | 4.5 |
| ET-PGM22B-1214 | 6.0-12.0V | 12VDC | 14 | ≤60 | 11 | ≤220 | 6.0 |
| ET-PGM22B-127.5 | 6.0-12.0V | 12VDC | 7.5 | ≤60 | 5.6 | ≤220 | 8.0* |
| ET-PGM22B-125.2 | 6.0-12.0V | 12VDC | 5.2 | ≤60 | 3.9 | ≤220 | 8.0* |
| ET-PGM22B-124.6 | 6.0-12.0V | 12VDC | 4.6 | ≤60 | 3.3 | ≤220 | 8.0* |
| ET-PGM22B-123.3 | 6.0-12.0V | 12VDC | 3.3 | ≤60 | 2.3 | ≤220 | 8.0* |
| Remarks: 1. Shaft dimension can be customized. 2. The Voltage can be 6V, 12V 24V; The DC Motor's speed is adjustable. 3. This gearbox can matched with other DC Motor. |
|||||||
