ET-WGM58
所属分类
蜗杆减速电机
>尺寸(WL)： 58*40mm >电压： 12-24VDC >转速： 1-100rpm >典型用途： 阀门、电动窗帘、机器人
产品详情
Overviews
| Performance Range: | Key Features: | Typical Applications: |
| -Voltage: 12~24VDC -Speed: 1~100rpm -Torque: 1~80kg.cm |
-Spur Low noise -Small Backlash -High Holding Torque |
-Electric Blinds,Curtain |
Gear Ratio
| Gear Ratio Stage | 3 | 4 | 5 | |
| Gear Ratio | 49 | 217 | ||
| 74 | 291 | |||
| 100 | 506 | |||
| 634 | ||||
| 1269 | ||||

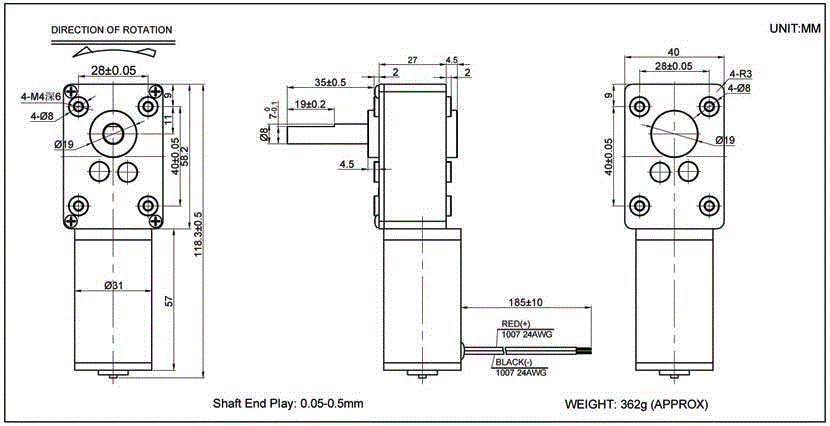

Dimensions
Reference Data
| MODEL | VOLTAGE | NO LOAD | AT RATED LOAD | ||||
| OPERATION RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | |
| r/min | A | r/min | A | kg.cm | |||
| ET-WGM58-1271 | 9.0-14.0 | 12.0 | 71 | ≤0.18 | 54 | ≤0.85 | 3.5 |
| ET-WGM58-1247 | 9.0-14.0 | 12.0 | 47 | ≤0.18 | 35 | ≤0.85 | 5.5 |
| ET-WGM58-1235 | 9.0-14.0 | 12.0 | 35 | ≤0.18 | 26 | ≤0.85 | 7.3 |
| ET-WGM58-1216 | 9.0-14.0 | 12.0 | 16 | ≤0.18 | 12 | ≤0.85 | 15.5 |
| ET-WGM58-1212 | 9.0-14.0 | 12.0 | 12 | ≤0.18 | 9 | ≤0.85 | 21.0 |
| ET-WGM58-126.9 | 9.0-14.0 | 12.0 | 6.9 | ≤0.18 | 4.6 | ≤0.85 | 35.0 |
| ET-WGM58-125.5 | 9.0-14.0 | 12.0 | 5.5 | ≤0.18 | 3.8 | ≤0.85 | 44.0 |
| ET-WGM58-2494 | 15.0-28.0 | 24.0 | 94 | ≤0.22 | 69 | ≤1.20 | 10.0 |
| ET-WGM58-2470 | 15.0-28.0 | 24.0 | 70 | ≤0.22 | 52 | ≤1.20 | 13.0 |
| ET-WGM58-2424 | 15.0-28.0 | 24.0 | 24 | ≤0.22 | 17.5 | ≤1.20 | 36.0 |
| ET-WGM58-2411 | 15.0-28.0 | 24.0 | 11 | ≤0.22 | 8.0 | ≤1.20 | 70.0 |
| Remarks: 1. Gearbox Shaft can be made with double shaft, shaft dimension can be customized. 2. The Voltage can be 12.0VDC, 24VDC; The DC Motor's speed is adjustable. 3. This gearbox can matched with other DC Motor. |
|||||||
