ET-PGM36BL
所属分类
行星齿轮减速电机
无刷电机
>尺寸(WL)： φ36mm >电压： 12-24VDC >转速： 1-1500rpm >典型用途： 医疗设备
产品详情
Overviews
| Performance Range: | Key Features: | Typical Applications: |
-Voltage: 12-24VDC -Speed: 1-1500rpm -Torque: 0.1-60kg.cm | -Brushless Long Lifetime -Easy Control -Low Noise | -Robotics -Acuator and Electric Valve -Medical Equipment |
Gear Ratio
| Gear Ratio Stage | 1 | 2 | 3 | 4 | 5 |
| Gear Ratio | 3.7 | 14 | 51 | 188 | 977 |
| 5.2 | 19 | 71 | 264 | 1367 | |
| 27 | 100 | 369 | 1910 | ||
| 139 | 516 | 2671 | |||
| 721 | 3736 | ||||
| Gearbox Length(L)mm | 25.2 | 31.7 | 38.5 | 44.7 | 51.4 |

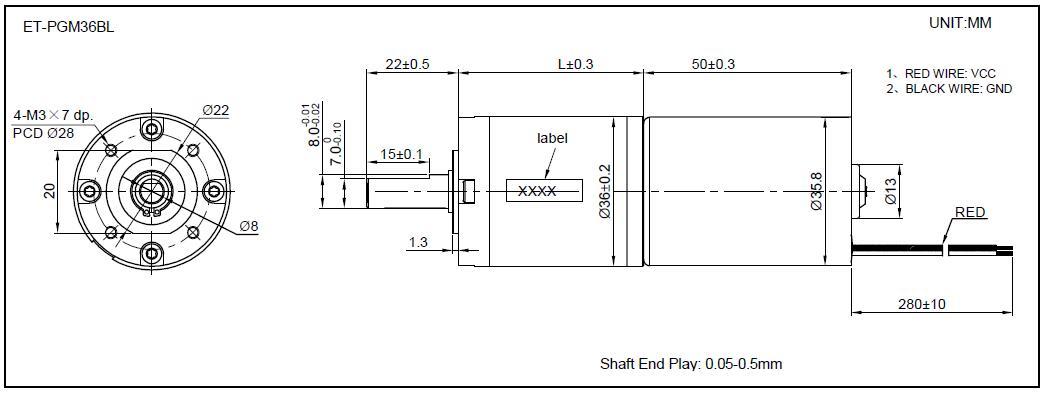

Dimensions
Reference Data
| MODEL | VOLTAGE | NO LOAD | AT RATED LOAD | ||||
| OPERATION RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | |
| r/min | mA | r/min | A | kg.cm | |||
| ET-PGM36BL-121150 | 10-15V | 12VDC | 357 | ≤350 | 285 | ≤1.7 | 2.8 |
| ET-PGM36BL-12428 | 10-15V | 12VDC | 263 | ≤350 | 210 | ≤1.7 | 3.8 |
| ET-PGM36BL-12315 | 10-15V | 12VDC | 185 | ≤350 | 148 | ≤1.7 | 5.5 |
| ET-PGM36BL-12222 | 10-15V | 12VDC | 98 | ≤350 | 78 | ≤1.7 | 9.3 |
| ET-PGM36BL-12117 | 10-15V | 12VDC | 70 | ≤350 | 56 | ≤1.7 | 13 |
| ET-PGM36BL-1284 | 10-15V | 12VDC | 50 | ≤350 | 40 | ≤1.7 | 18 |
| ET-PGM36BL-1260 | 10-15V | 12VDC | 36 | ≤350 | 29 | ≤1.7 | 25 |
| ET-PGM36BL-1243 | 10-15V | 12VDC | 26.5 | ≤350 | 21 | ≤1.7 | 32 |
| ET-PGM36BL-1232 | 10-15V | 12VDC | 18.9 | ≤350 | 15 | ≤1.7 | 44 |
| ET-PGM36BL-1223 | 10-15V | 12VDC | 13.5 | ≤350 | 11 | ≤1.7 | 60* |
| ET-PGM36BL-1216 | 10-15V | 12VDC | 9.6 | ≤350 | 7.7 | ≤1.7 | 60* |
| ET-PGM36BL-1211.5 | 10-15V | 12VDC | 6.9 | ≤350 | 5.5 | ≤1.7 | 60* |
| ET-PGM36BL-128.3 | 10-15V | 12VDC | 5 | ≤350 | 4 | ≤1.7 | 60* |
| ET-PGM36BL-1206 | 10-15V | 12VDC | 3.6 | ≤350 | 2.9 | ≤1.7 | 60* |
| ET-PGM36BL-124.3 | 10-15V | 12VDC | 2.6 | ≤350 | 2 | ≤1.7 | 60* |
| ET-PGM36BL-121.6 | 10-15V | 12VDC | 1.3 | ≤350 | 1 | ≤1.7 | 60* |
Remarks: 3. This gearbox can matched with other DC Motor. | |||||||
